Sigma Kneader

Sigma kneader

Excellent for kneading and mixing of highly viscous materials like dough, putty, rubber solutions, adhesives, polymers etc. The mixing action is a combination of smearing, stretching, folding, dividing and recombining as the material is processed between the sigma blades and the container walls. Jacket arrangement is provided for heating or cooling application. In bigger models the container is tilted by a hydraulic cylinder to ensure complete discharge of mass.


MODEL TOTAL VOLUMETRIC CAP. IN LTRS. HP HYDRAULIC TILTING HP
SFK 6 6 1.5 N.A
SFK 25 25 3 N.A
SFK 50 60 5 N.A
SFK 125 125 10 N.A
SFK 225 225 20 1.5
SFK 500 500 30 2
SFK 1000 1000 60 3
SFK 1500 1500 75 3
SFK 3000 3000 300 7.5

Note : Working capacity to be calculated @ 60% of Total Capacity.

The Kneader Extruder combines the efficiency of a double arm - sigma blade mixer with the convenience of an extrusion screw for the mixing and discharging of heavy viscous materials. Such as Adhesives, Explosives, Mastics, Sealing compounds, Biscuit dough’s, Fiberglass resin dough’s, Metal powders, Silicone rubber, Butyl rubber, Food and confectionery products, Moulding preparations, Soaps and detergents, Carbon pastes, Gaskets and Gland Packing’s, Pencil erasers, Solid propellants, Ceramics Grinding wheel preparations, Pharmaceuticals, Sugar pastes, Chemicals, Hot-Melts, Plastics, Viscous rubber solutions, Chewing gum, Inks and pigment products, Putties, Crayon and pencil lead, Marzipan, Refractories.

The Kneader Extruder includes a set of counter-rotating kneading blades and a discharge screw. The blades are mounted on a horizontal axis in a u-shaped trough. Below the blades in a separate cavity is the discharge screw. During the mixing cycle the blades rotate toward each other while the mixing screw rotates in a reverse direction, constantly feeding new materials into the mixing blades. After the mixing/kneading cycle is complete, the screw is reversed and it transports the mixed materials from the mix zone out through a discharge die and on to further processing or packaging.

The Kneader Extruder has several advantages over conventional non-screw discharge kneaders:

  • Low mixing time approx. 15% less time.
  • Eliminates the manual task of scraping out sticky/tacky materials.
  • Eliminates operator exposure to materials of elevated temperatures or of a toxic nature, thereby improving plant safety.

Many Different sizes and designs are available to meet the most stringent process needs. Kneader Extruders are manufactured in many sizes from 5 through 2500 Liters capacity. Other sizes manufactured on request.

Standard Features

  • Available in all grades of Carbon Steel and Stainless Steel.
  • Available with single and twin screw designs.
  • Optional wear resistant liner plates provided for abrasive products.
  • Optional wear resistant liner plates provided for abrasive products.
  • Jacketed construction available for heating and cooling applications.
  • Can be offered for vacuum application.
  • Available in working capacities of 5 Liters to 2500 Liters. Other sizes manufactured on request.

Advantages over conventional tilting bottom discharge kneaders:

  • Low mixing time.
  • Continuous operation possible because of extrusion screw.
  • Elimination of the manual scraping of sticky/tacky materials.
  • Eliminates operator exposure to materials at elevated temperatures or those of a toxic nature, thereby improving plant safety.



SIGMA MIXER EXTRUDER/ MIXTRUDER

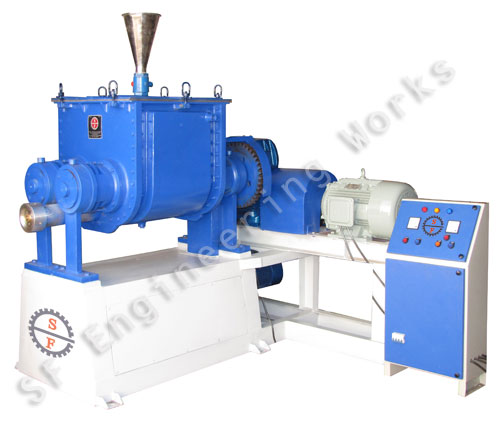

SIGMA-EXTRUDER / Sigma Mixtruder Sigma Mixer Extruder and mixtruder

Sigma Extruder parts

SIGMA MIXER EXTRUDER - CAPACITY TABLE


Model No.

Working Capacity (Liter)

SHELL SIZE

Total Capacity (Liter)

MAIN GEAR BOX

Mixer (HP)

Extruder (HP)

SFSME – 50

30 - 50

16” X 16”

75

4”

1.0 – 1.5

5 – 7.5

SFSME – 75

50 – 75

20” X 20”

110

6”

15 – 20

5 – 7.5

SFSME – 150

75 – 150

24” X 24”

200

8”

30 – 40

10 – 15

SFSME – 300

150 – 300

36” X 36”

400

10”

40 – 50

10 - 15

**Note – The actual power consumption shall depend upon the application and the properties of the material to be mixed (Density, Viscosity etc.)
** Note – As improvements in design are being made continuously, the above specifications should be considered for reference only. The equipment built may differ due to our policy of continues product development.
